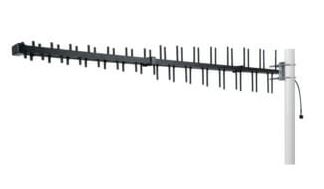

The Blackhawk LPDA Antenna is one of the most popular external antenna solutions for poor 3G / 4G voice and data service. This one antenna can be used on any mobile network, in any area without worrying about compatibility. It is the ideal roof-mounted antenna for Cel-Fi repeaters.

The LPDA antenna covers all cellular bands between the 700 and 4000 MHz range with a high peak gain which projects maximum energy in the direction of the cell tower, while maintaining a wide enough beam to capture signal reflections off nearby buildings, hills, and signals scattered by trees.

FEATURES:

11.3 dBi peak gain across lower bands 698 to 960 MHz
11.5 dBi peak gain across bands 1695 to 2700 MHz
9.5 dBi gain across upper bands 3300 to 4000 MHz
Ruggedized construction for Australian conditions
Fully welded, powder coat aluminum design
Stainless steel mounting clamp included
30 cm tail with pre-terminated choice of either N Female connector or 4.3-10 Female connecter + 10m LMR 240 cable
Ideal for Telstra, Optus, and Vodafone 3G, 4G & 5G

PK Technology supplies and installs Cel-Fi signal boosters and antennas, we can custom-build your building Cellular booster system, servicing Mandurah, Rockingham, Cockburn, Perth
